*REBUILT UNITS SHOWN

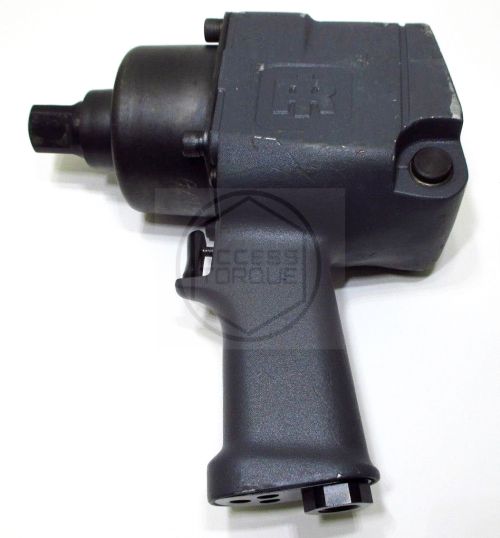

Ingersoll Rand 1720P3 "Pistol" Grip
Features:
Industrial Grade Quality
Hardened steel hammer case
Through hole socket retainer
Power regulator dial
Exhaust system is built into the handle
Jumbo impact hammer mechanism
Epoxy paint coated handle
Pressure feed lubrication system
Specifications
Drive: 1" Square
Handle Type: Pistol Grip
Free Speed RPM: 5,500
Impacts Per Minute: 1,100
Max. Torque FT-LB (Nm): 1,100 (1,491)
Recommended Torque Range FT-LB (Nm): 250-750 (339-1017)
Weight Less Socket LB (KG): 12.3 (5.6)
Length Less Socket in (mm): 7.63 (194)
Side to Center Distance in (mm): 1.91 (48)
Recommended Hose Size in (mm): 1/2 (13)
Air Inlet Thread Size (NPTF): 3/8"
CFM (L/min): 40 (1132)

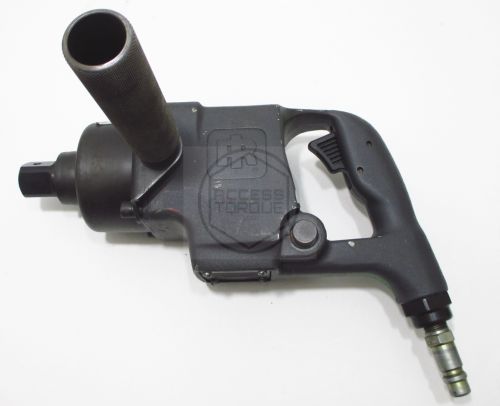

Ingersoll Rand 1720B3
Features:
1/2” NPT inlet
Through-hole socket retainer
Built-in power regulator
Pressure-feed mechanism lubrication
Durable epoxy-coated handle/housing
Integral muffler
Jumbo Hammer mechanism
Steel hammer case
Specifications:
Drive: 1" Square
Handle Type: Grip I.T. (inside trigger)
Free Speed RPM: 5,500
Impacts Per Minute: 1,000
Max. Torque FT-LB (Nm): 1,100 (1,491)
Recommended Torque Range FT-LB (Nm): 250-750 (339-1017)
Weight Less Socket LB (KG): 14 (6.35)
Length Less Socket in (mm): 11.75 (299)
Side to Center Distance in (mm): 1.91 (48)
Recommended Hose Size in (mm): 1/2 (13)
CFM (L/min): 40 (1132)

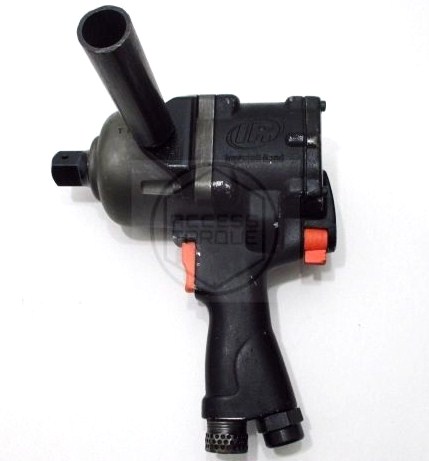

Ingersoll Rand 3940P2Ti "Pistol" Grip
Features:
1/2” NPT inlet
Through-hole socket retainer
Built-in power regulator
Pressure-feed mechanism lubrication
Durable epoxy-coated handle/housing
Integral muffler
Twin Hammer mechanism
Bronze endplates
Titanium hammer case
7-vane reverse bias motor
Specifications:
Duty: Industrial
Handle: Pistol
Power: Air
Drive: 1" Square
Free Speed (RPM): 5,300
Maximum Torque ft-lb (Nm): 2,500 (3,390)
Recommended Torque Range ft-lb (Nm): 500 - 1,650 (680 - 2,240)
Impacts Per Minute: 800
Weight (lb): 20.4
Length (in): 10.1
Side to Center Distance (in): 2.3
Recommended Hose Size (in): 3/4
CFM @ 90 PSI: 64

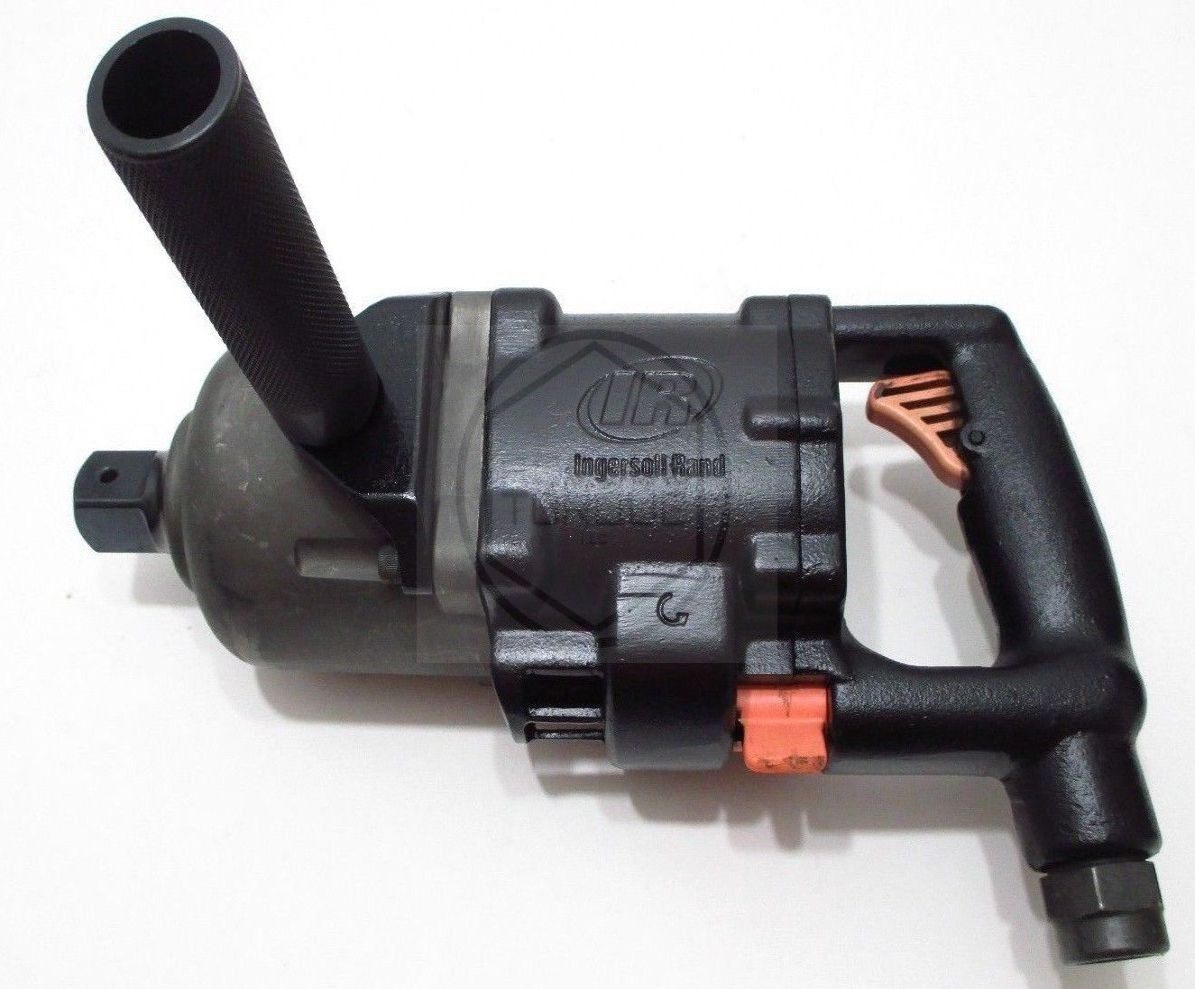

Ingersoll Rand 3940B2Ti
Features:
1/2” NPT inlet
Through-hole socket retainer
Built-in power regulator
Pressure-feed mechanism lubrication
Durable epoxy-coated handle/housing
Integral muffler
Twin Hammer mechanism
Bronze endplates
Titanium hammer case
7-vane reverse bias motor
Specifications:
Duty: Industrial
Handle: D-Handle
Power: Air
Drive: 1" Square
Free Speed (RPM): 6,000
Maximum Torque ft-lb (Nm): 2,500 (3,390)
Recommended Torque Range ft-lb (Nm): 500 - 1,650 (680 - 2,240)
Impacts Per Minute: 800
Weight (lb): 21.4
Length (in): 13.5
Side to Center Distance (in): 2.3
Recommended Hose Size (in): 3/4
CFM @ 90 PSI: 64

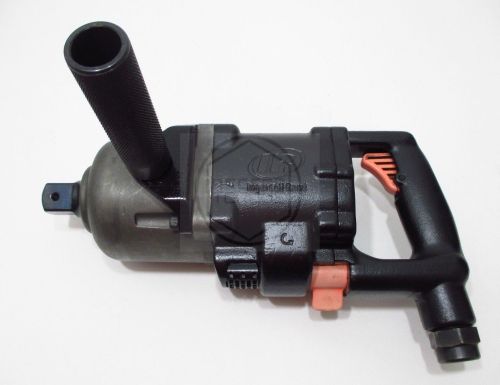

Ingersoll Rand 3942B2Ti
Features:
1/2” NPT inlet
Through-hole socket retainer
Built-in power regulator
Pressure-feed mechanism lubrication
Durable epoxy-coated handle/housing
Integral muffler
Twin Hammer mechanism
Bronze endplates
Titanium hammer case
7-vane reverse bias motor
Specifications:
Duty: Industrial
Handle: D-Handle
Power: Air
Drive: 1" Square
Free Speed (RPM): 5,000
Maximum Torque ft-lb (Nm): 3,250 (4,406)
Forward Torque ft-lb (Nm): 1,950 (2,644)
Impacts Per Minute: 850
Weight (lb): 22.6
Length (in): 14.3
Side to Center Distance (in): 2.3
Recommended Hose Size (in): 3/4
CFM @ 90 PSI: 95

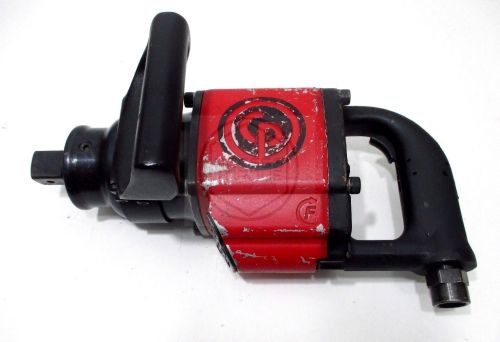

Chicago Pneumatic CP0611-D28H
Features:
Super Industrial 1" impact wrench
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
Specifications:
Blows per Minute: 1,020
Air Inlet: 1/2" NPT
Average CFM @ 15 Second Run Time: 17.00
Max. Torque: 2,800 ft lbs.
Duty: Industrial
Style: D-Handle
CFM @ Full Load: 68.0
Max. Bolt Capacity: 1-3/8"
Free Speed: 3,500 RPM
Required Pressure: 90 psi
Square Drive Size: 1"
Overall Length: 14.2"
Torque Range: 900 to 1,800 ft lb
Handle Material: Aluminum
Min. Hose Size: 5/8"
OTHER BRAND WRENCHES AVAILABLE ON REQUEST.
