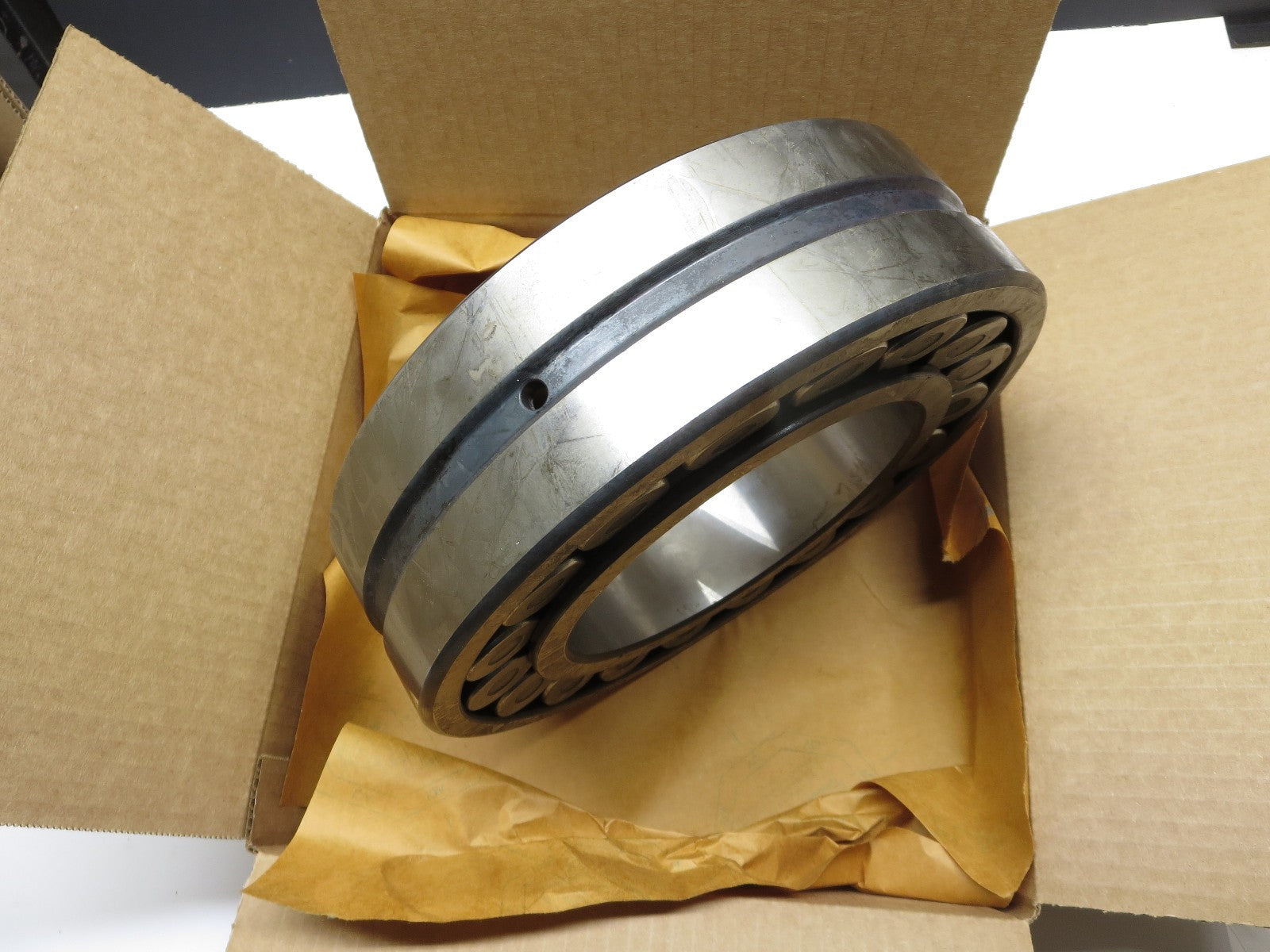

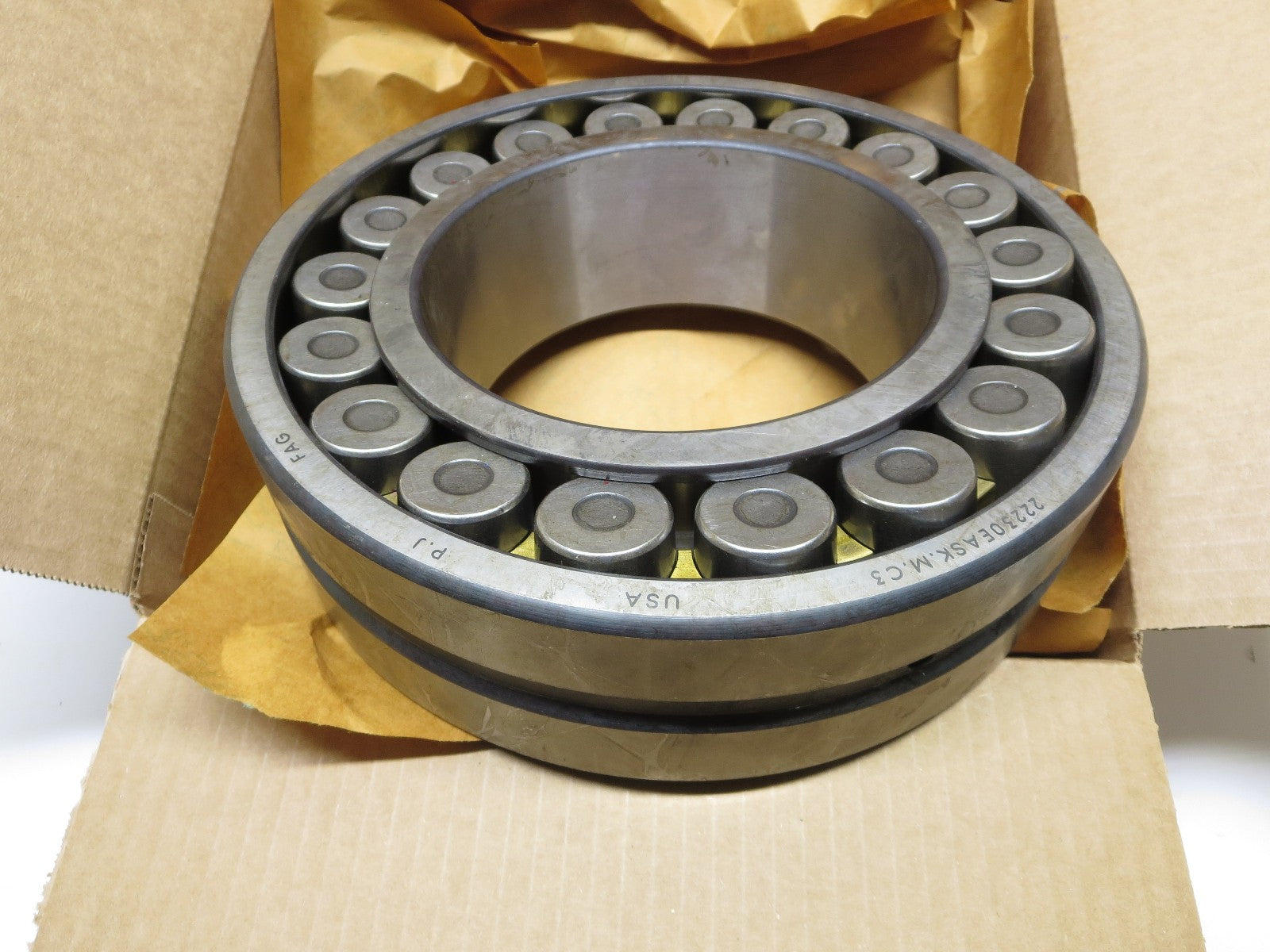

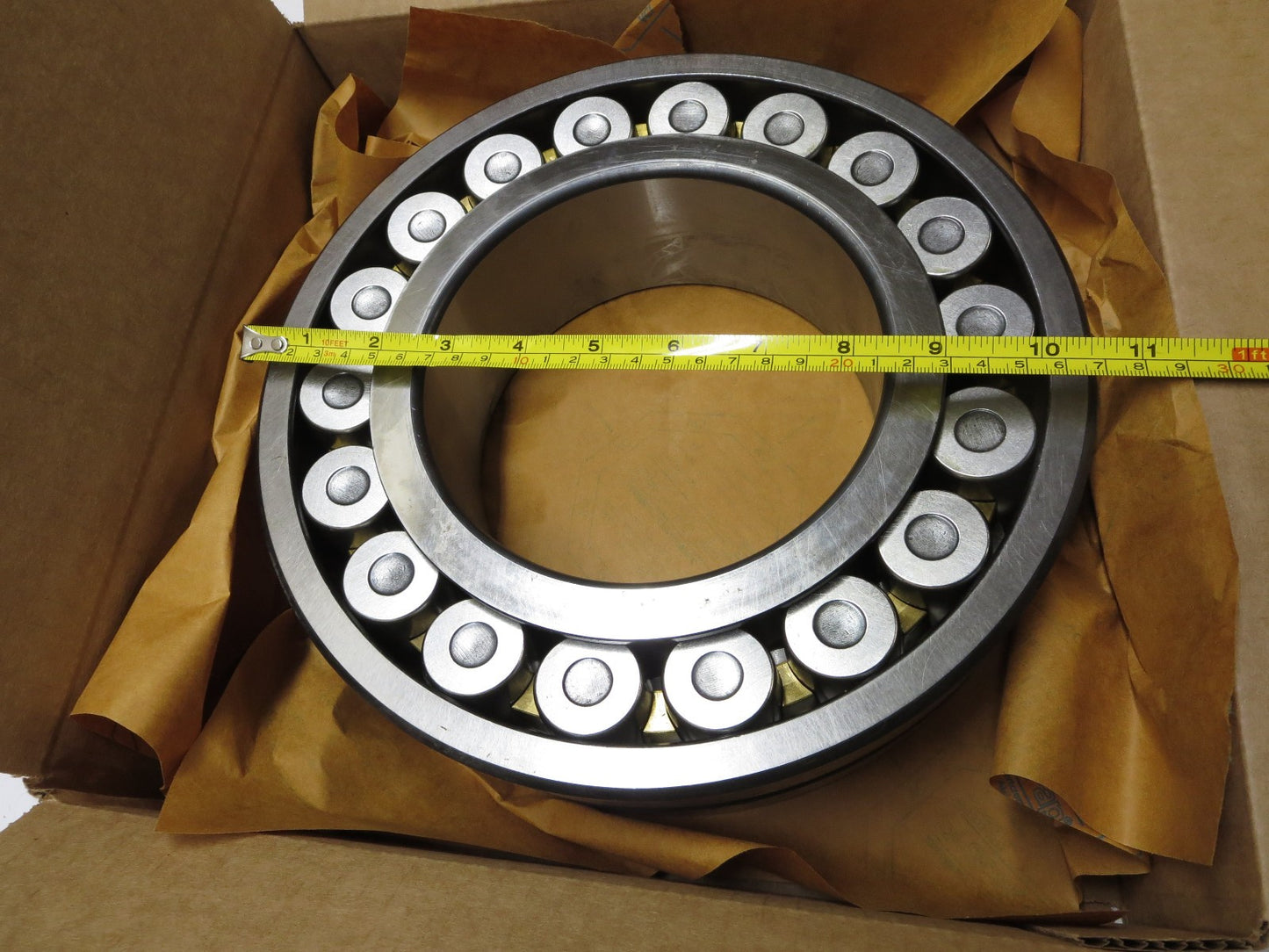

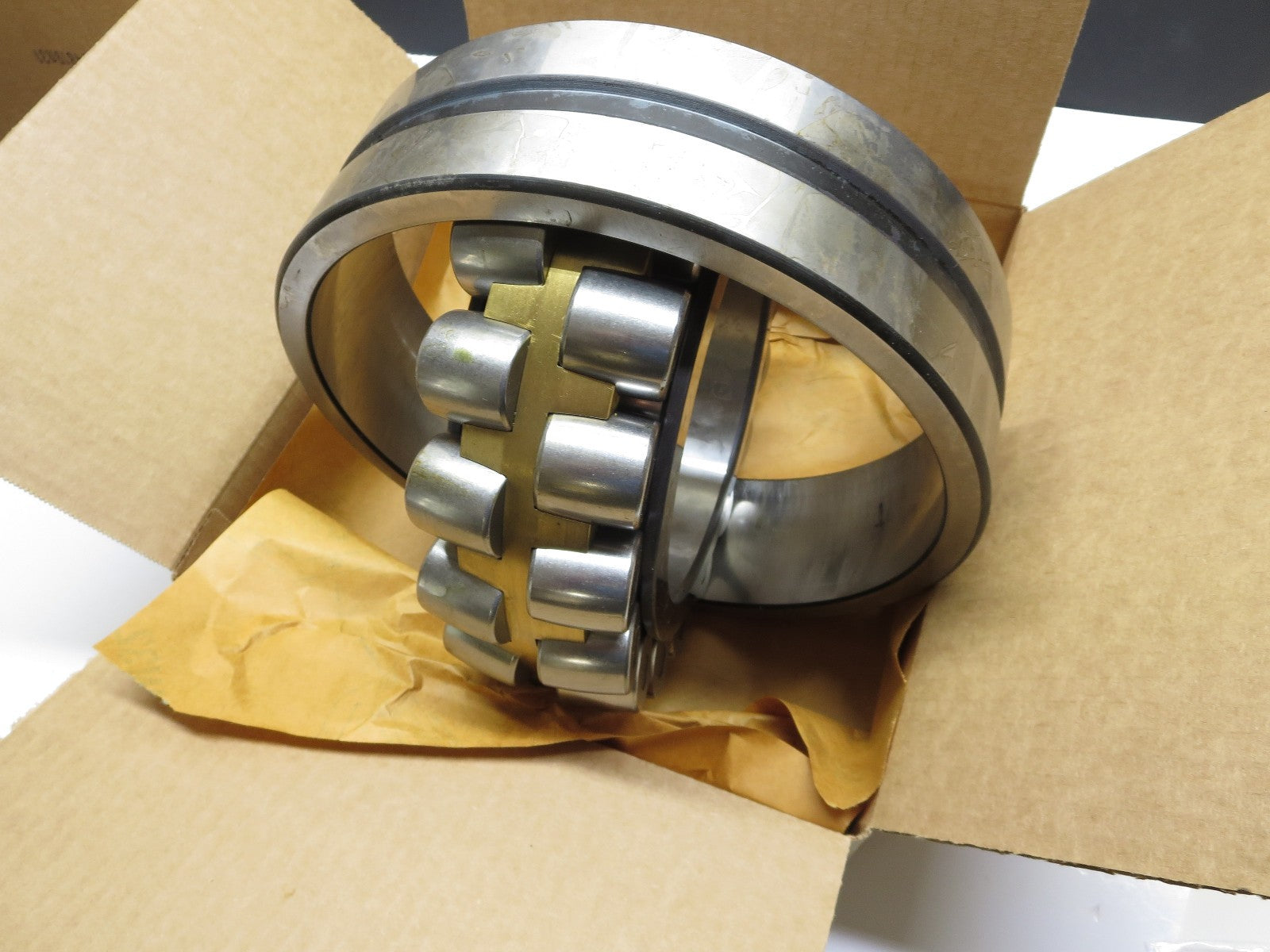

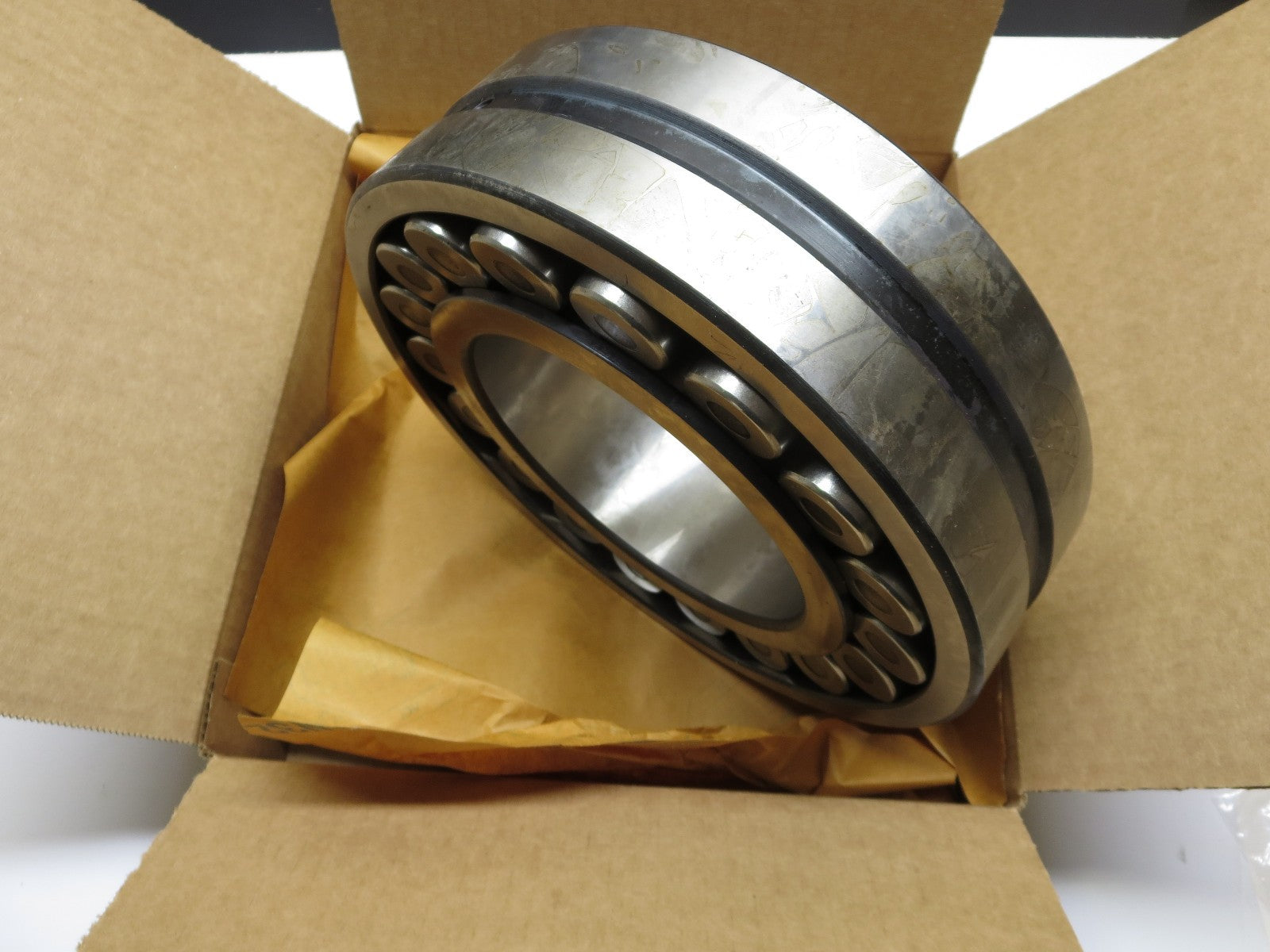

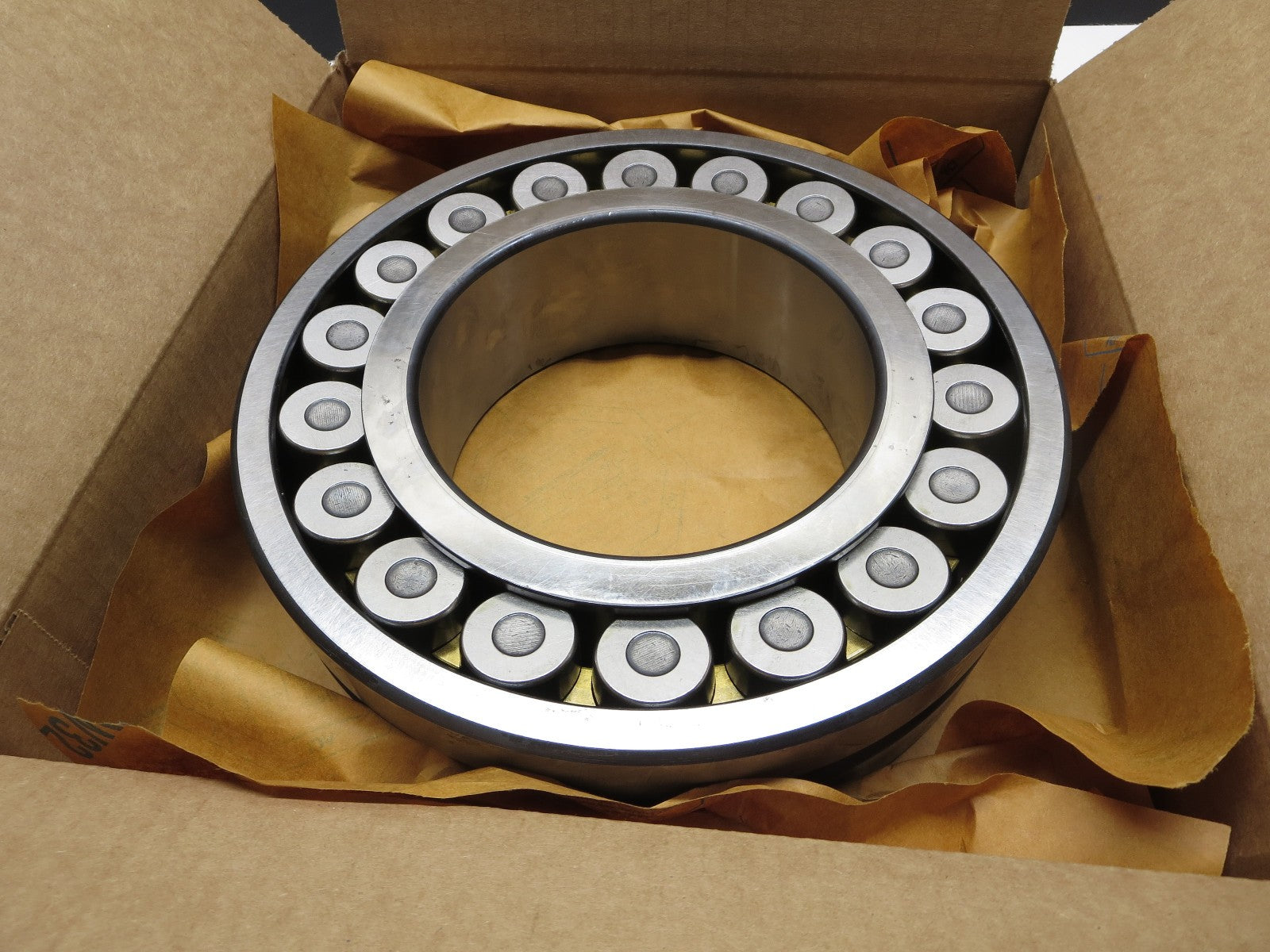

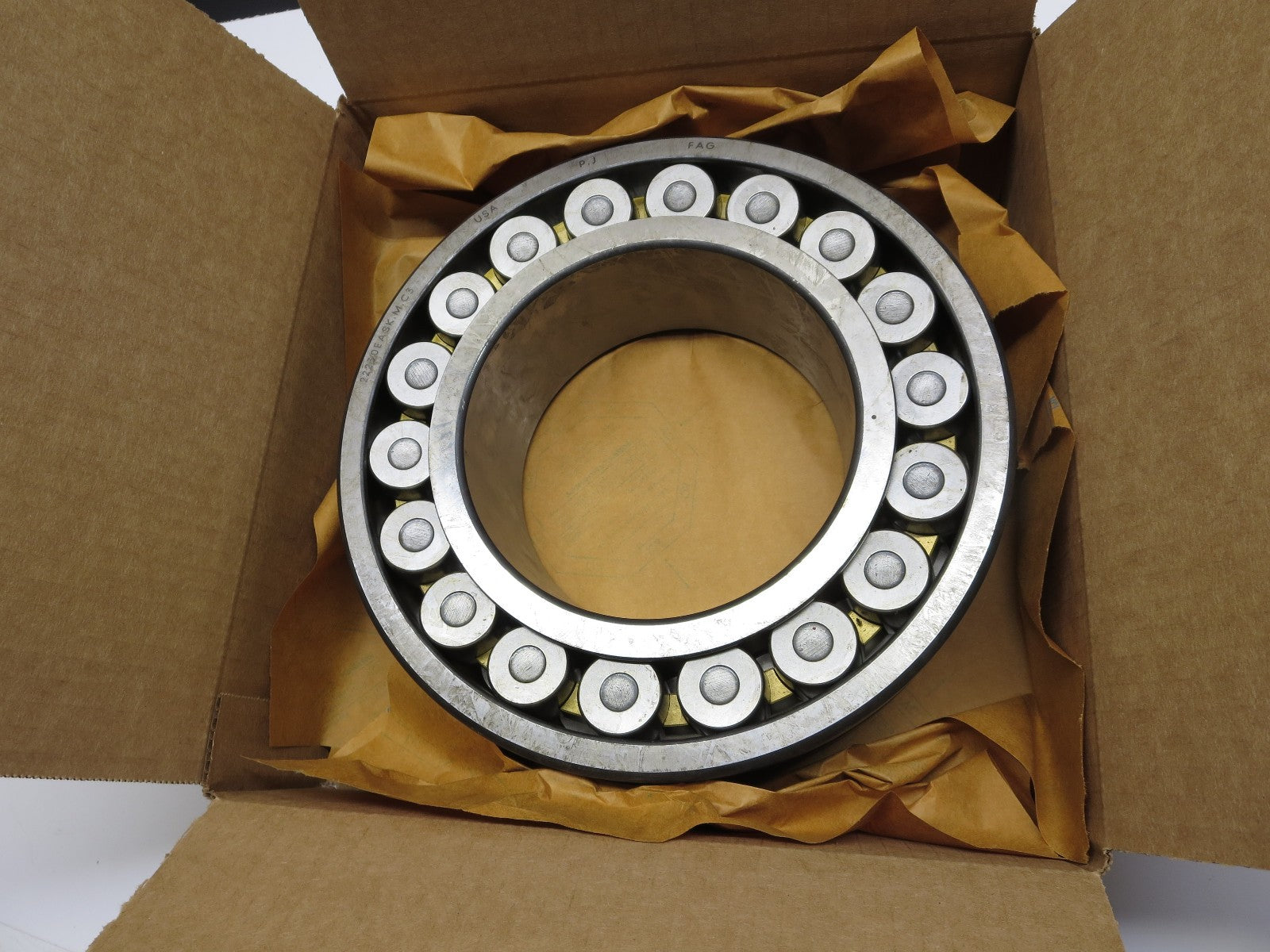

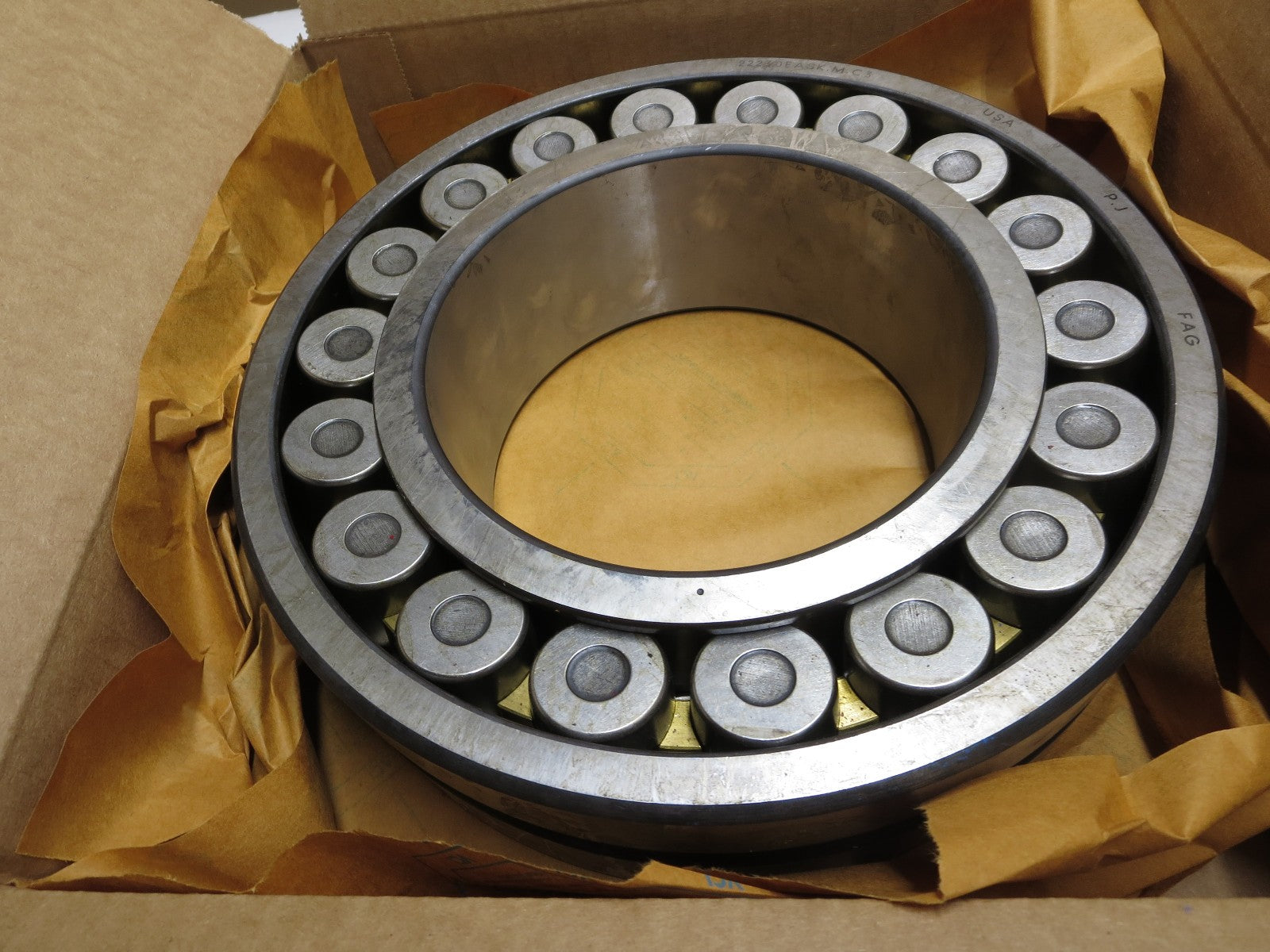

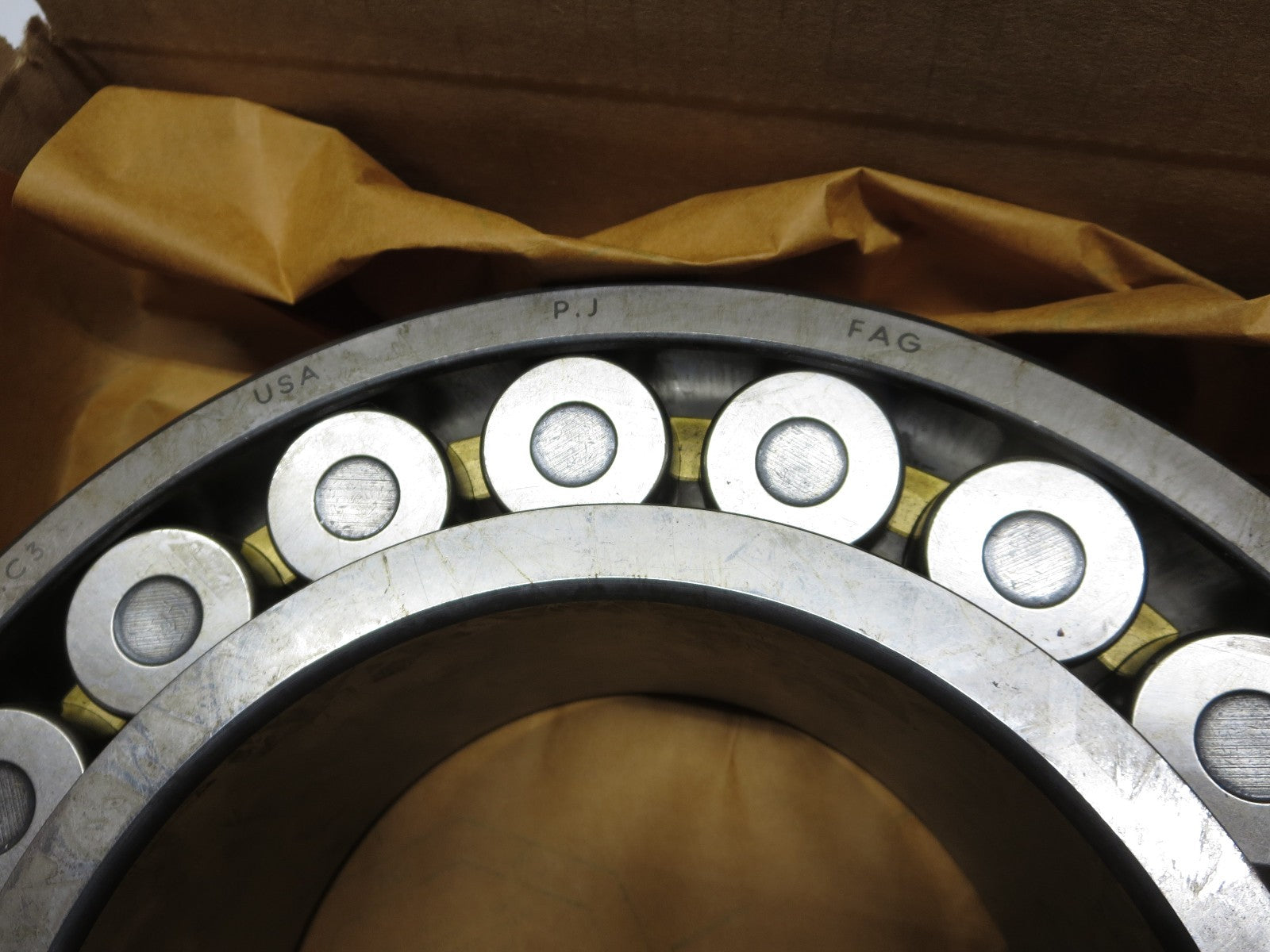

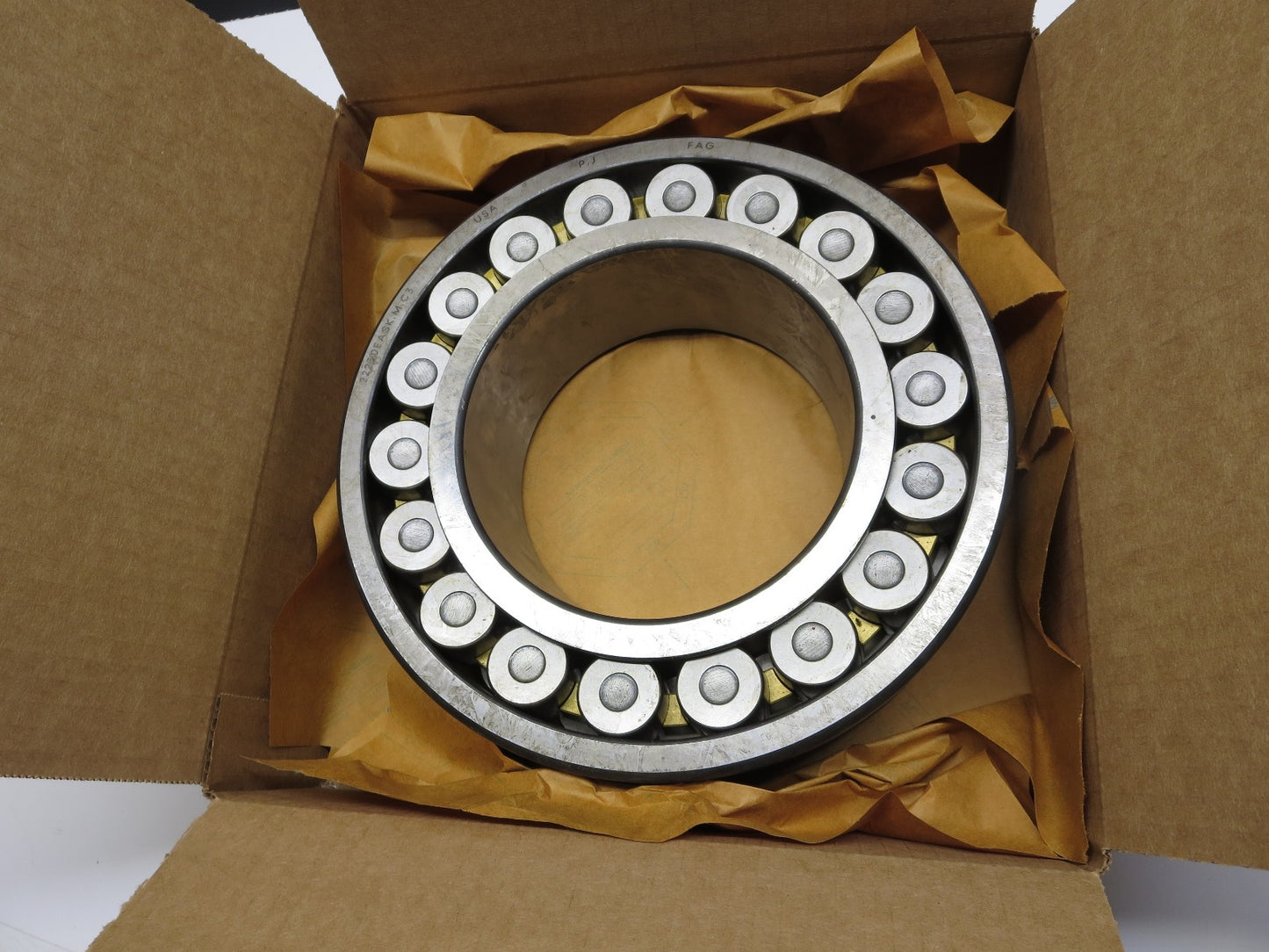

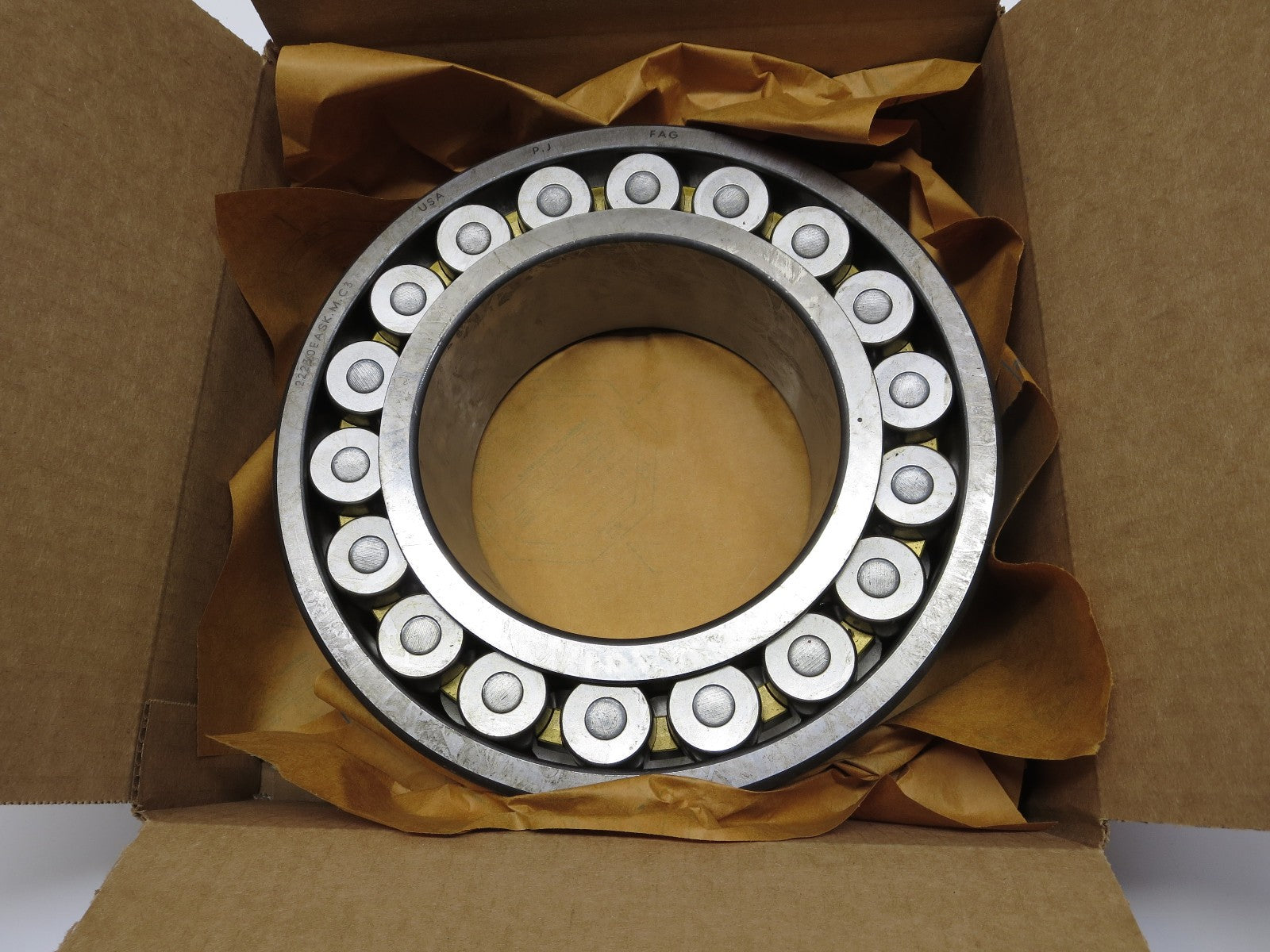

1 ea. FAG Spherical Roller Bearing 22230-EASK.M 150mm x 270mm x 73mm Made in USA
Part Identification and Nomenclature

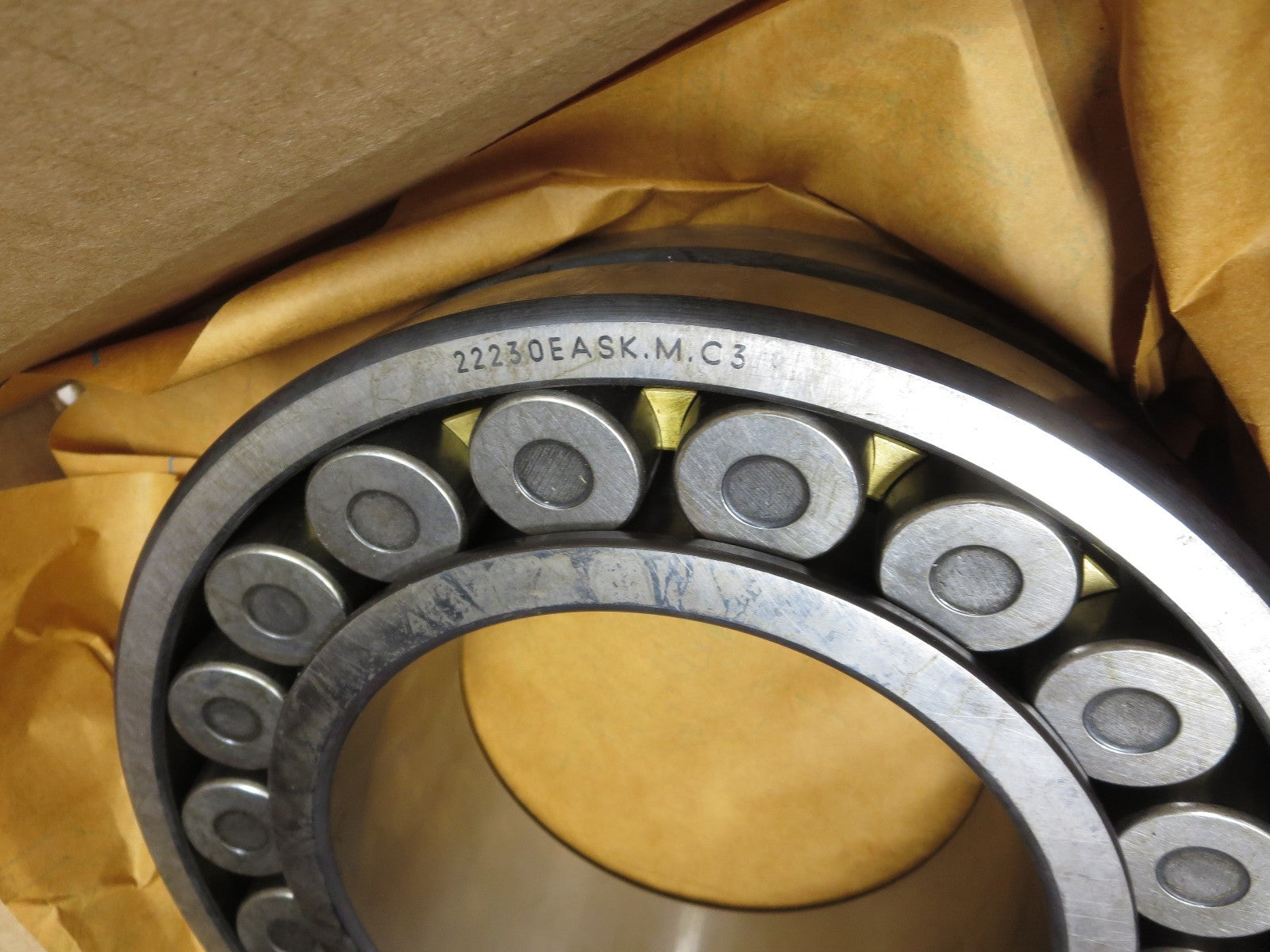

The 22230-EASK.M.C3 is a double-row spherical roller bearing in the 22200 series, denoting a 150 mm bore. Its code breaks down as:
E – high-capacity internal design
A – pressed-steel cage
S (often shown as XL) – X-life optimized internal geometry for extended service life
K – 1:12 tapered bore
.M – machined-brass cage
.C3 – radial internal clearance greater than normal sp-spareparts.com NTN Americas
Design & Construction

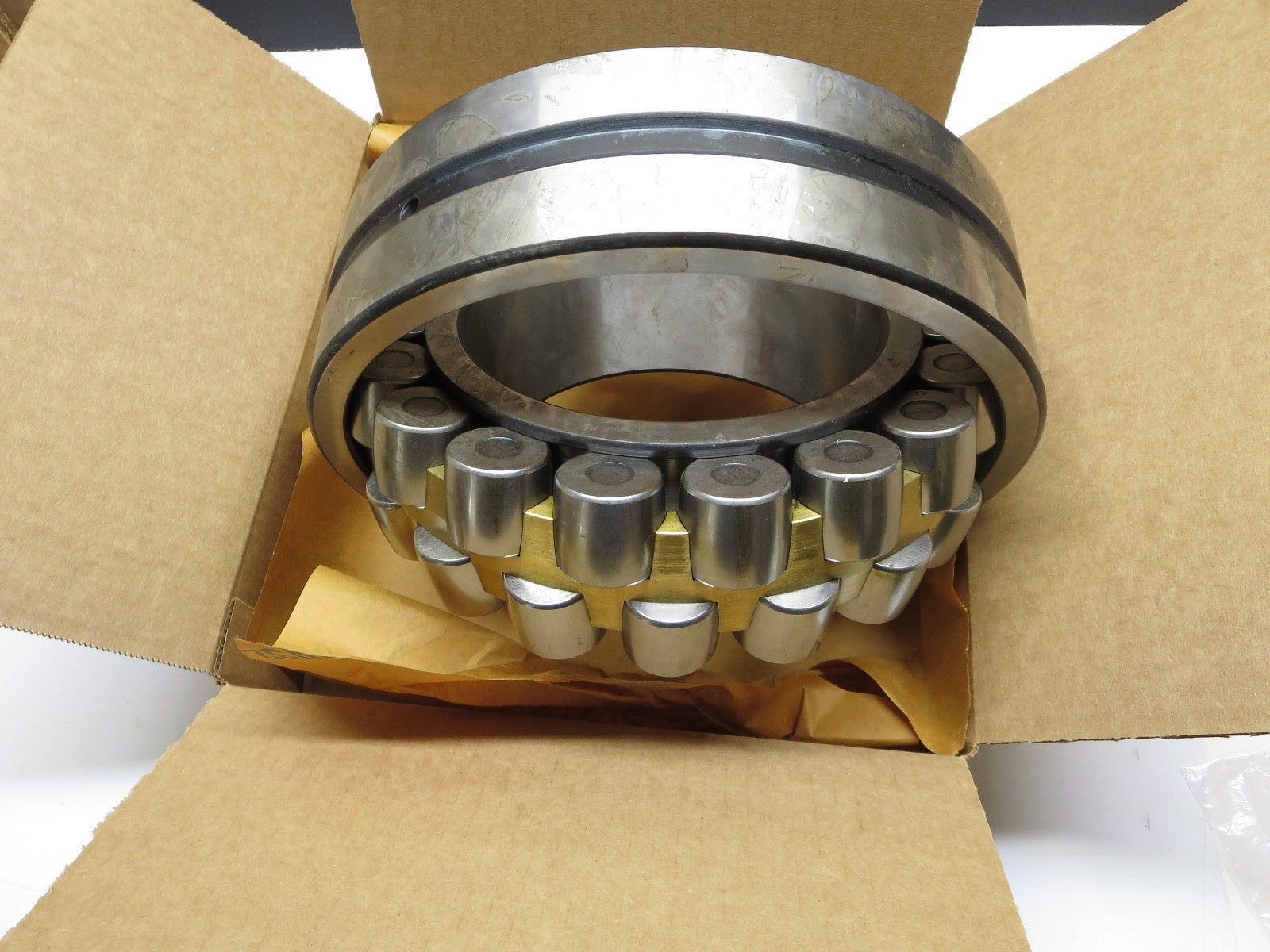

This bearing features two rows of barrel-shaped rollers running on a concave spherical outer raceway, allowing self-alignment up to several degrees to compensate for shaft deflections. The solid inner ring and open design facilitate lubrication, enabling high radial load capacity and the ability to carry axial forces in both directions. abf.store en.tradebearings.com Technical Specifications

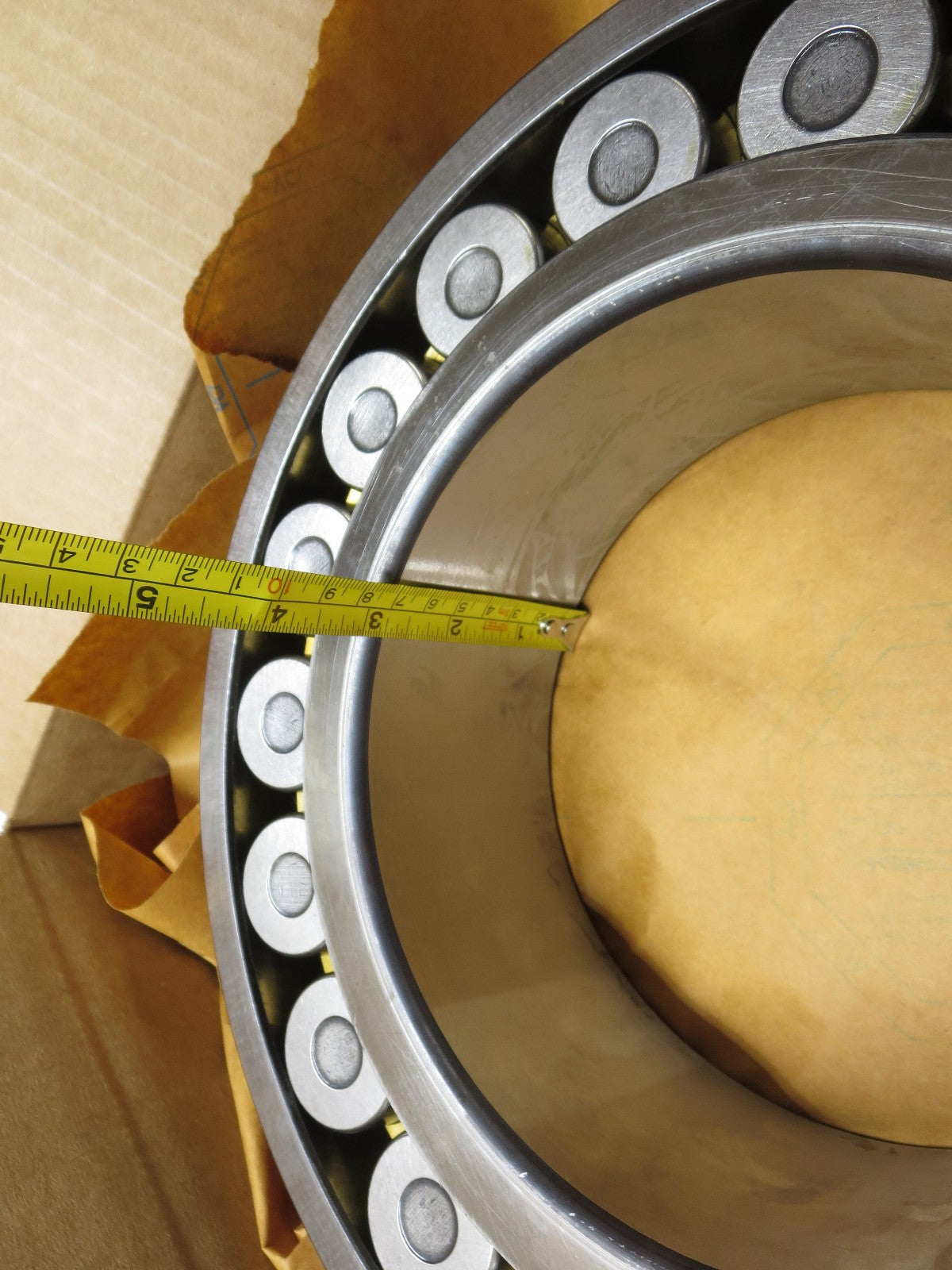

Bore Diameter (d): 150 mm
Outer Diameter (D): 270 mm
Width (B): 73 mm
Weight: ~17 kg (37.5 lb)
Basic Dynamic Load Rating (Cr): 1 010 000 N
Basic Static Load Rating (C₀r): ~1 210 000 N
Fatigue Load Limit (Cᵤr): ~114 000 N
Limiting Speed: 2600 RPM
Cage Material: Brass/Bronze
Bore Type: 1:12 Tapered
Internal Clearance: C3 (greater than normal) sp-spareparts.com Applied
Applications
Commonly found in heavy-duty machinery where high radial and moderate axial loads occur, and misalignments must be accommodated. Typical uses include:
Elevators and hoists
Textile and paper-processing machines
Food-processing equipment
Cranes and winches
Gearboxes, pumps, and compressors
Mining and construction machinery abf.store Eastern Industrial Automation
Cross-References
Equivalent part numbers from other manufacturers:
FAG: 22230-E1-A-XL-K-M-C3 (X-life version of the same bearing)
