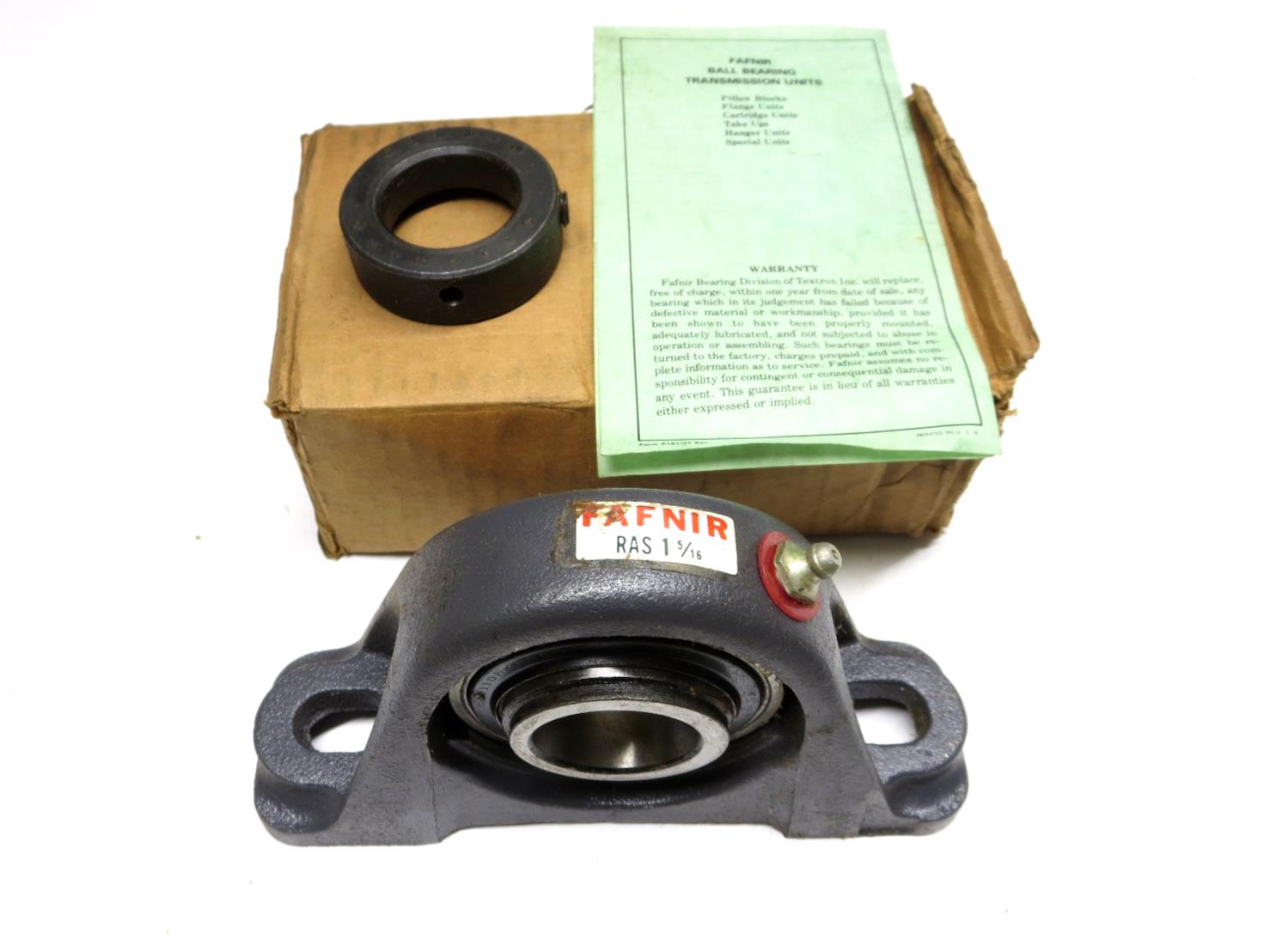

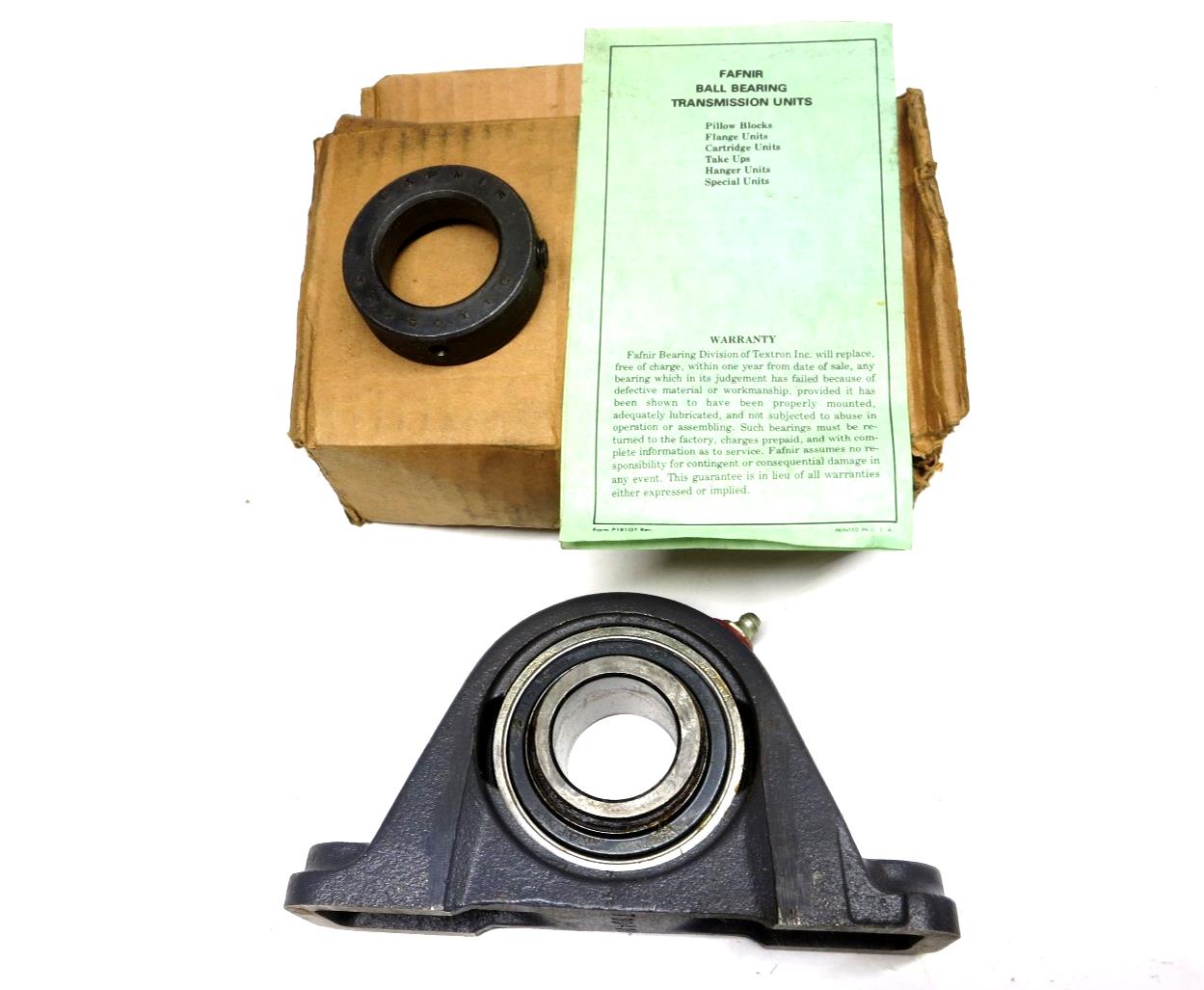

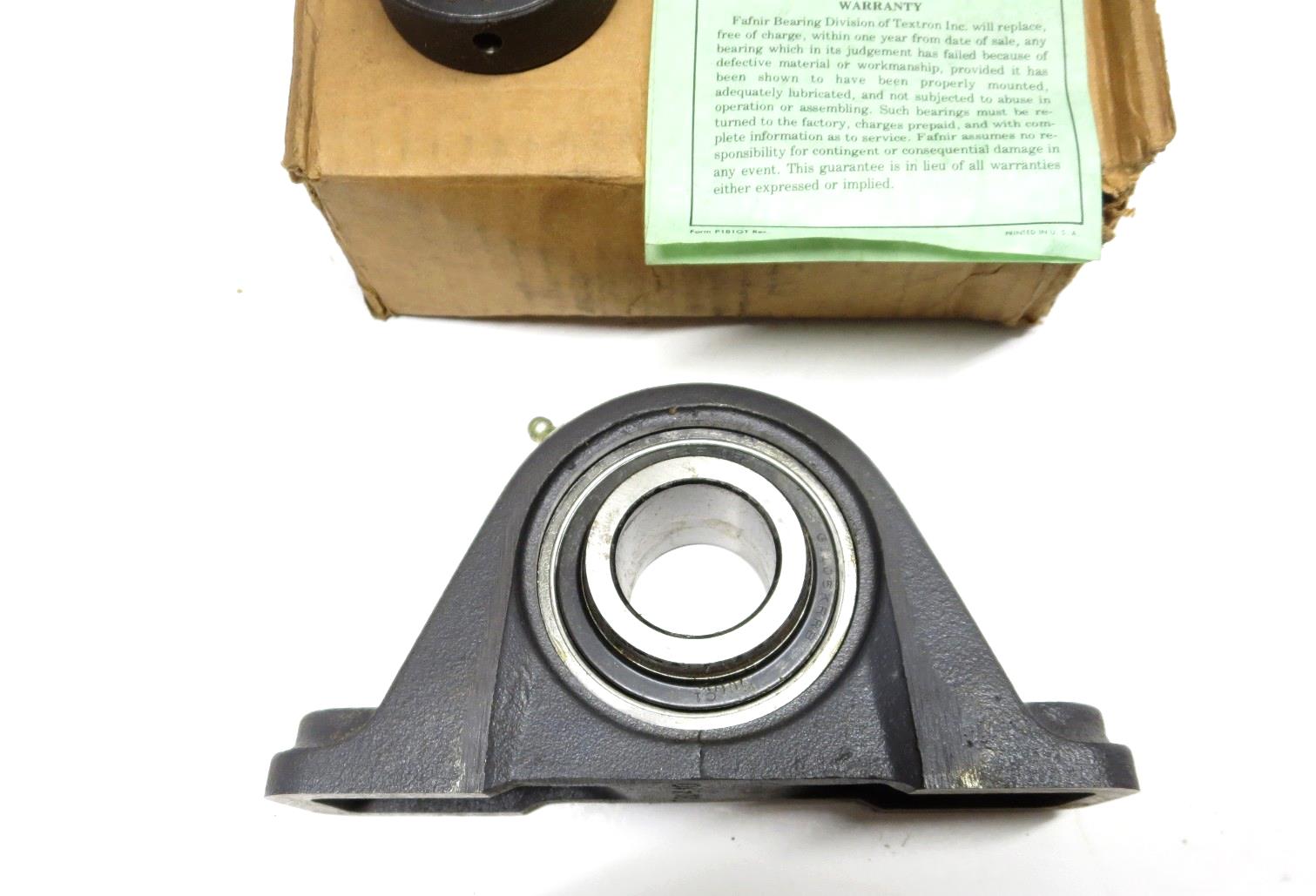

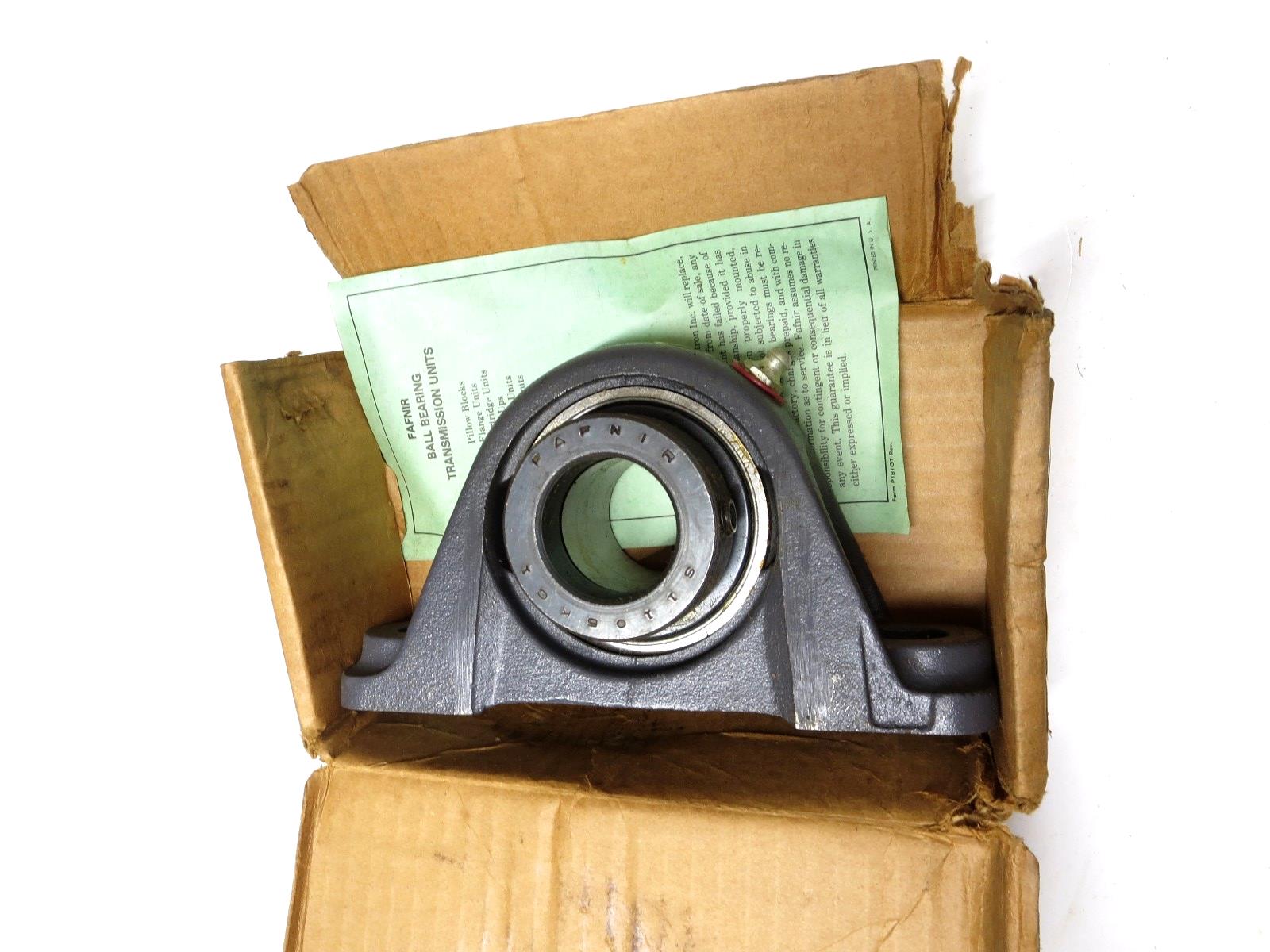

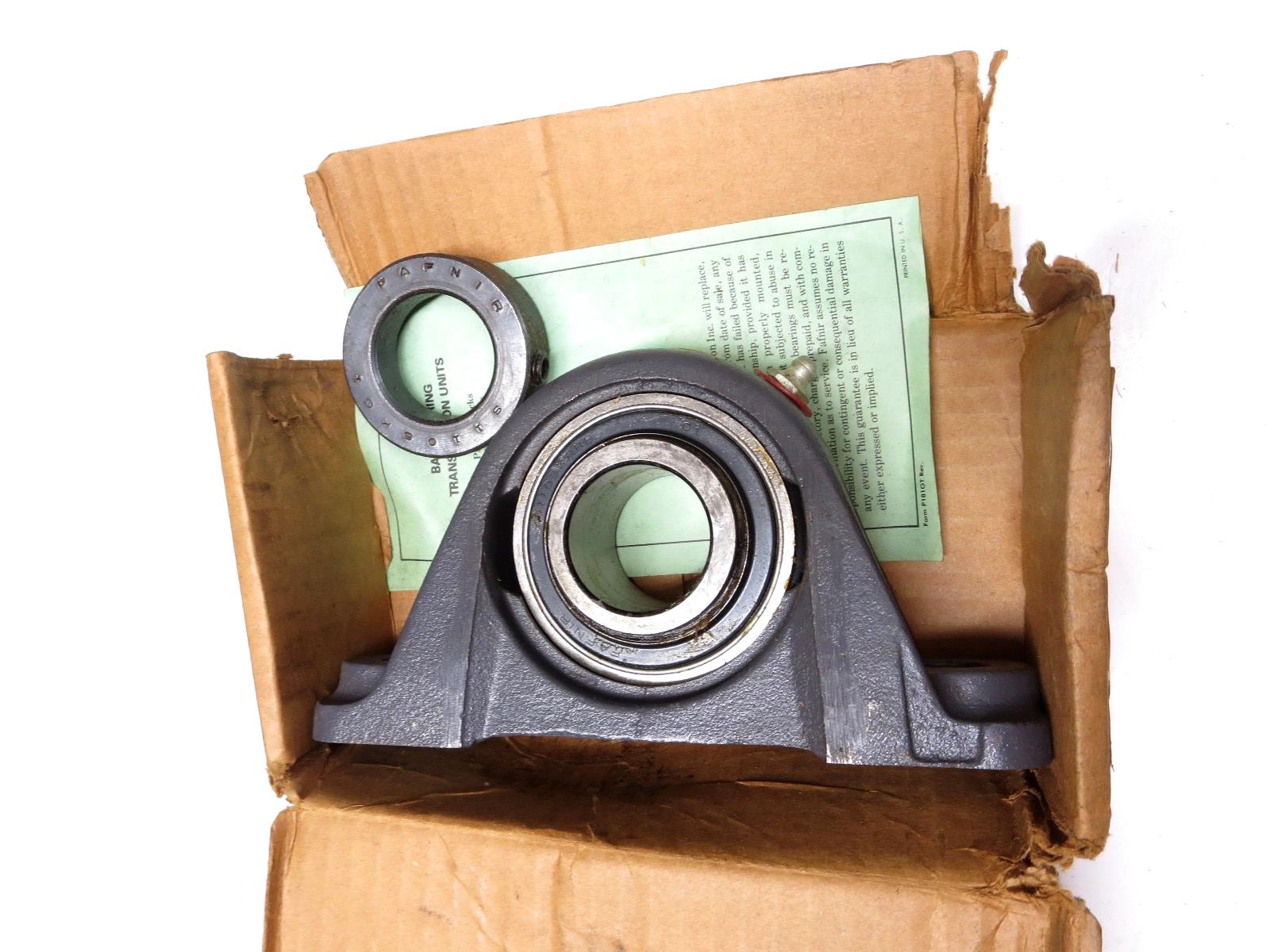

NEW FAFNIR RAS 1 5/16 PILLOW BLOCK BEARING W/ COLLAR & MANUAL - MADE IN USA
RAS 1 5/16 Pillow Block Specifications Spec Imperial Metric Shaft Bore (d) 1 5/16″ (1.3125 in) 33.3 mm Base to Center Height (H) 1.875 in 47.63 mm Total Length (L) 6.563 in 166.7 mm Total Width (A) 1.843 in 46.8 mm Bolt Hole Spacing (J) 5.126 in 130.2 mm Bolt Hole Width (N) 0.563 in 14.3 mm Bolt Hole Length (N₁) 0.969 in 24.6 mm Foot Height (H₁) — 18.3 mm Total Height (H₂) 3.752 in 95.3 mm Bearing Insert Outer Dia (d₁) 2.126 in 54 mm Inner Ring Width (B₁) 2.016 in 51.2 mm Dimension T (seal thickness) 0.921 in 23.4 mm Dynamic Load Rating 6,400 lbf 28,500 N Static Load Rating 3,440 lbf 15,300 N Weight 4.167 lb 1.89 kg
