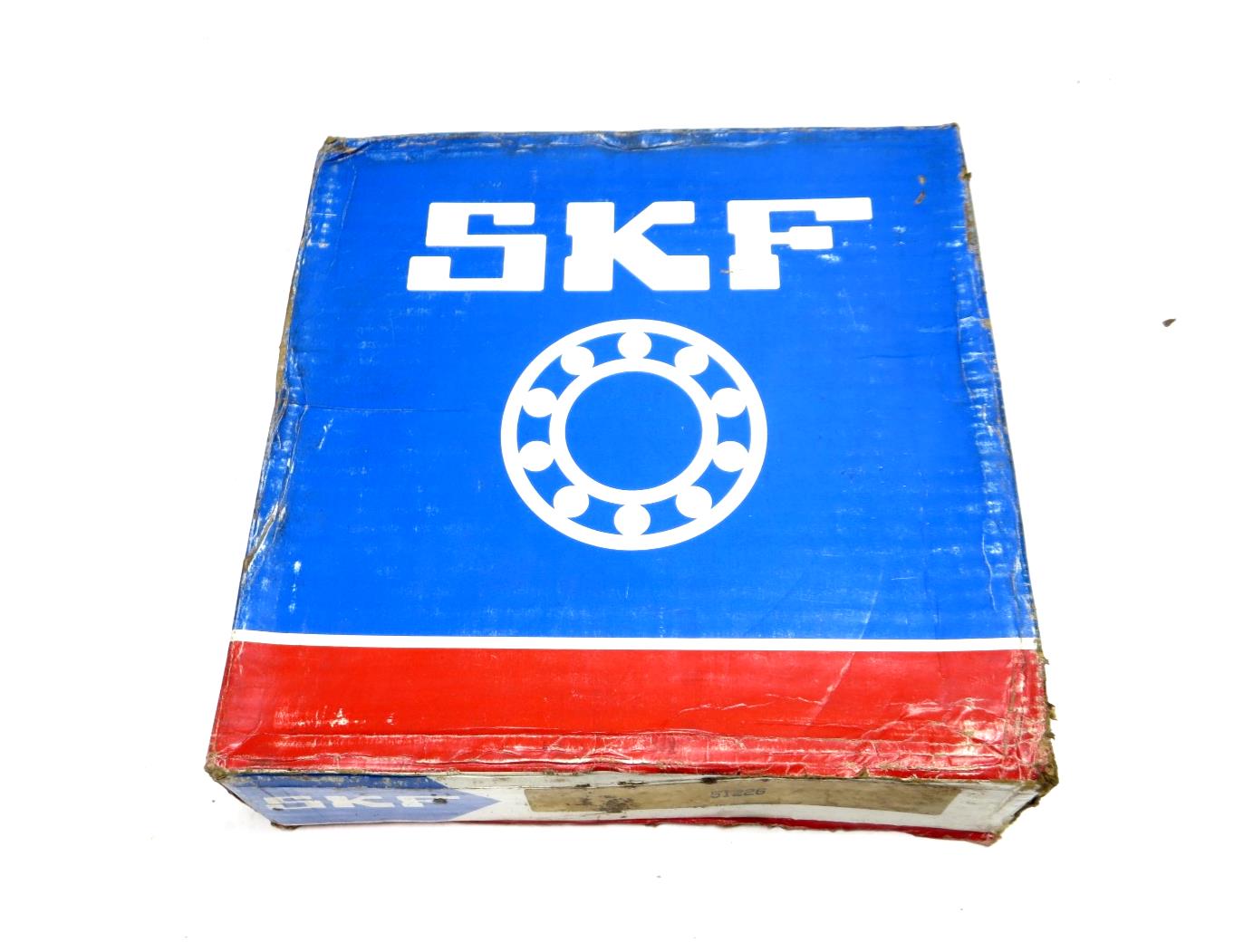

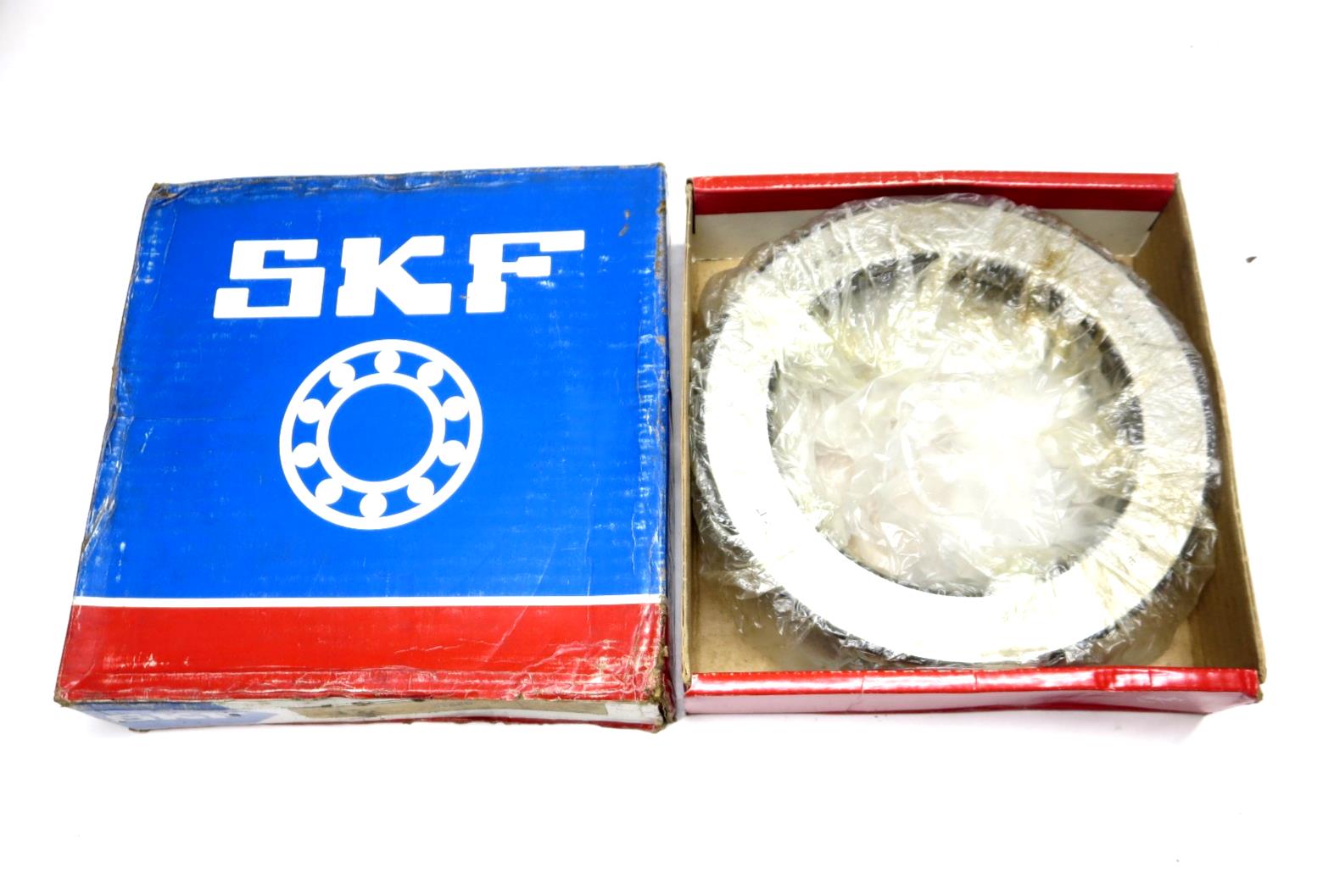

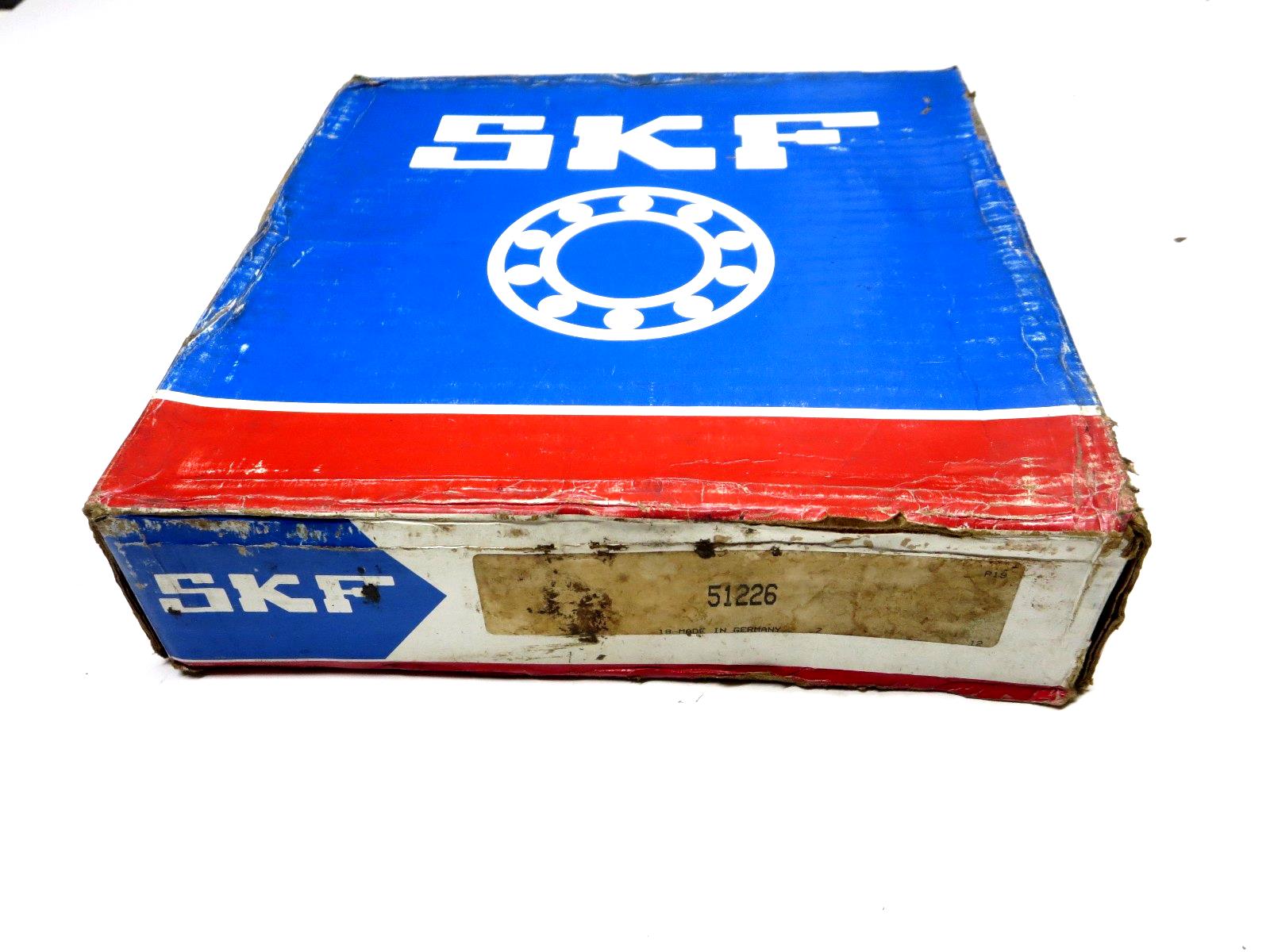

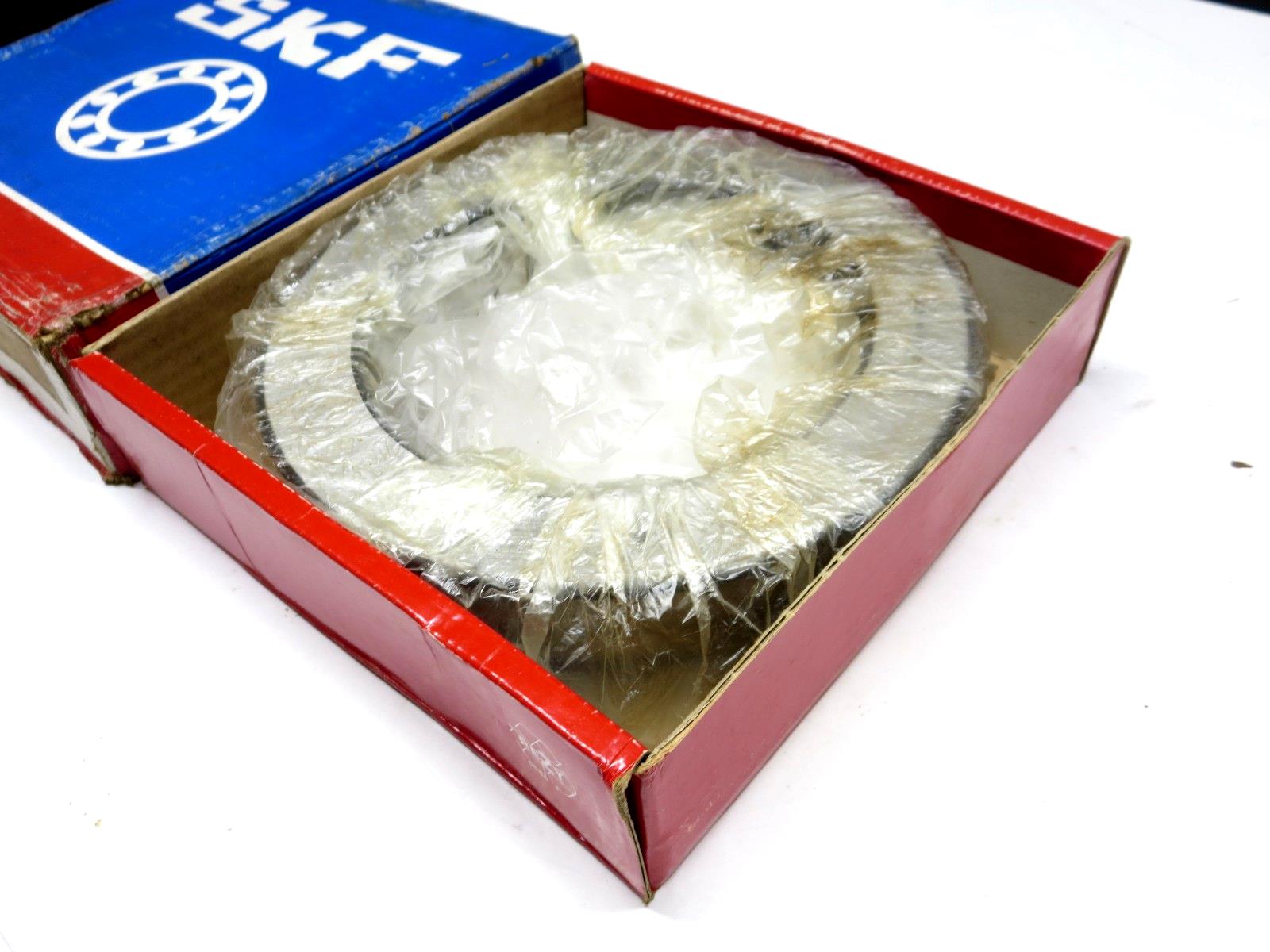

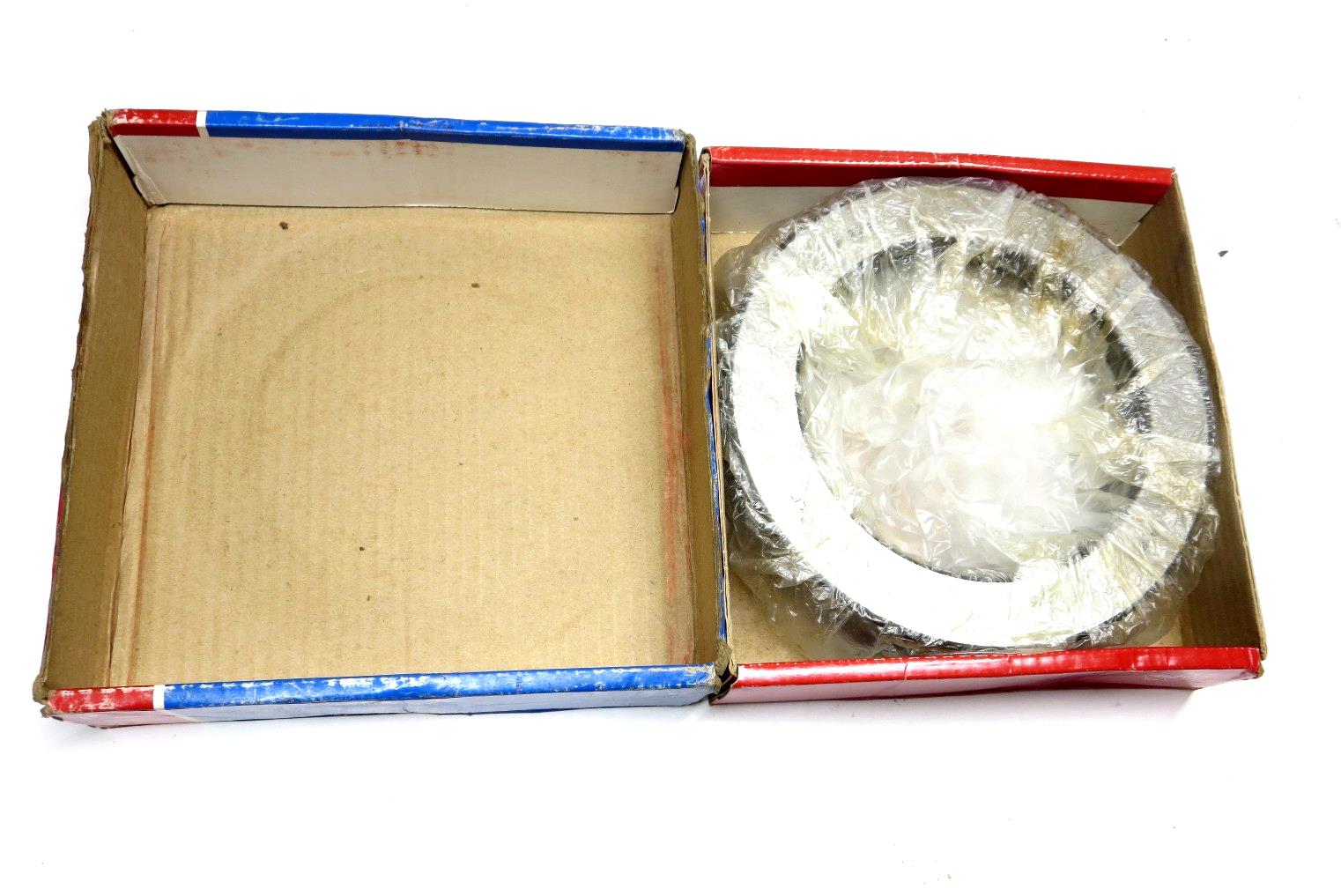

SKF Germany 51226 Thrust Ball Bearing 130x190x45 (mm) Ships Fast from SC USA

SKF 51226 Thrust Ball Bearing – Specifications

    Type: Single-direction thrust ball bearing

    Bore Diameter (d): 130 mm

    Outer Diameter (D): 190 mm

    Width / Thickness (H/B): 45 mm

    Cage Material: Steel (sheet-metal cage)

    Precision Class: ISO Class Normal (ABEC 1, P0)

    Dynamic Load Rating: 186 kN

    Static Load Rating: 585 kN

    Fatigue Load Limit: 17 kN

    Reference Speed: 1400 RPM

    Limiting Speed: 2000 RPM

    Seals / Shields: Open design (no seals)

    Separable Design: Yes; separable into shaft washer, housing washer, and ball & cage assembly

    Fillet Radius: 1.5 mm

    Weight: ~4 kg (≈ 8.9 lb)
